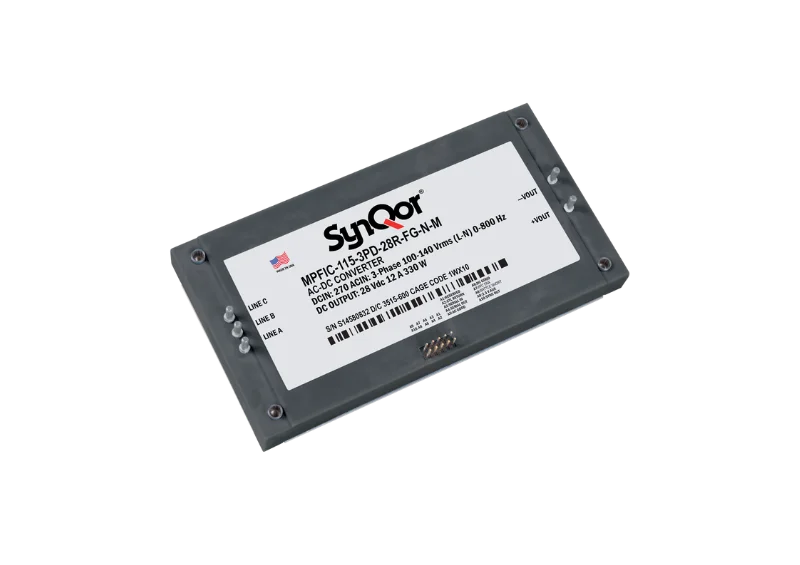

Potenciando sistemas críticos: Módulos MPFICQor de <a href="https://www.synqor.com/mpfic-ac-dc-converters">SynQor</a> vía Milexia

Milexia distribuye los módulos de corrección del factor de potencia aislados MPFICQor de SynQor, vitales para fuentes de alimentación AC-DC de alta eficiencia en aplicaciones militares, aeroespaciales e industriales en toda Europa.

Estos módulos extraen corrientes sinusoidales casi perfectas (PF &gt; 0.99) de entradas AC monofásicas o trifásicas cuando se combinan con filtros AC y condensadores de retención de SynQor, cumpliendo estrictos estándares MIL.

Utilizado en combinación con un condensador de hold‑up y el filtro de línea CA de SynQor, el MPFICQor extrae de la entrada monofásica una corriente casi perfectamente sinusoidal (PF &gt; 0,99).
<h2>Características principales y detalles técnicos</h2>
<ul>
 	<li>El MPFICQor destaca en entornos hostiles con formato full-brick (2.486" x 4.686" x 0.512", 320g), compatible con entradas trifásicas 115 Vrms L-N o 270 Vdc a 60/400 Hz.</li>
 	<li>Alta potencia (hasta 750W por módulo, escalable en paralelo), eficiencia &gt;95% a carga completa, THD conforme a MIL-STD-461 CE101.</li>
 	<li>Salidas DC reguladas/con caída (ej. modelo 54V), protecciones (OVP, SCP, térmica), interfaz serie, señales Power Good y modo battle short.</li>
</ul>
<h2 class="mb-2 mt-4 [.has-inline-images_&amp;]:clear-end font-sans visRefresh2026AnswerSerif:font-editorial font-semimedium visRefresh2026Fonts:font-bold text-base visRefresh2026Fonts:text-lg first:mt-0 md:text-lg [hr+&amp;]:mt-4" id="especificaciones-tcnicas-clave">Especificaciones Técnicas Clave Módulos MPFICQor:</h2>
<div class="group relative">
<div class="w-full overflow-x-auto md:max-w-[90vw] border-subtlest ring-subtlest divide-subtlest bg-transparent">
<table class="border-subtler my-[1em] w-full table-auto border-separate border-spacing-0 border-l border-t">
<thead class="bg-subtler">
<tr>
<th class="border-subtler p-sm break-normal border-b border-r text-left align-top">Parámetro</th>
<th class="border-subtler p-sm break-normal border-b border-r text-left align-top">MPFIC-115-3PH-54x-FT</th>
<th class="border-subtler p-sm break-normal border-b border-r text-left align-top">Notas</th>
</tr>
</thead>
<tbody>
<tr>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">Entrada AC</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">3x 85-143 Vrms L-N (115V nom), 47-800 Hz</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">270 Vdc opcional<span class="citation-nbsp"></span><span class="inline-flex" aria-label="GNSS/PPS-Disciplined Oscillators (GNSS-DOs)" data-state="closed"><span class="citation inline" data-pplx-citation="" data-pplx-citation-url="https://www.microchip.com/en-us/products/clock-and-timing/components/gnss-gps-disciplined"><a rel="noopener" class="inline-flex max-w-full min-w-0" target="_blank" href="https://www.microchip.com/en-us/products/clock-and-timing/components/gnss-gps-disciplined"></a></span></span></td>
</tr>
<tr>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">Salida DC</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">54V / 14A (750W máx), droop/regulado</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">Paralelable para &gt;10kW<span class="citation-nbsp"></span><span class="inline-flex" aria-label="MPFC-115-3PH-270-FP AC-DC PFC" data-state="closed"><span class="citation inline" data-pplx-citation="" data-pplx-citation-url="https://www.synqor.com/products/mil-cots/mpfc-115-3ph-270-fp"><a rel="noopener" class="inline-flex max-w-full min-w-0" target="_blank" href="https://www.synqor.com/products/mil-cots/mpfc-115-3ph-270-fp"></a></span></span></td>
</tr>
<tr>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">Eficiencia</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">&gt;95% @ full load</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">PF &gt;0.99, THD &lt;3%<span class="citation-nbsp"></span><span class="inline-flex" aria-label="GNSS/PPS-Disciplined Oscillators (GNSS-DOs)" data-state="closed"><span class="citation inline" data-pplx-citation="" data-pplx-citation-url="https://www.microchip.com/en-us/products/clock-and-timing/components/gnss-gps-disciplined"><a rel="noopener" class="inline-flex max-w-full min-w-0" target="_blank" href="https://www.microchip.com/en-us/products/clock-and-timing/components/gnss-gps-disciplined"></a></span></span></td>
</tr>
<tr>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">Dimensiones</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">2.486 x 4.686 x 0.512 in (63.1x119x13 mm)</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">Full-brick, 320g<span class="citation-nbsp"></span><span class="inline-flex" aria-label="Milexia Brand Guidelines v6.1 Nov 2025.pdf" data-state="closed"><span class="citation inline" data-pplx-citation="" data-pplx-citation-url="https://ppl-ai-file-upload.s3.amazonaws.com/web/direct-files/collection_0a308552-7be4-4fee-8dca-02acd4258783/73521384-41ea-4235-afeb-82c2317ad232/Milexia-Brand-Guidelines-v6.1-Nov-2025.pdf"></span></span></td>
</tr>
<tr>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">Estándares</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">MIL-STD-704A-F, 461G CE101, 810G</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">DO-160G Sect. 16 EMI<span class="citation-nbsp"></span><span class="inline-flex" aria-label="GNSS/PPS-Disciplined Oscillators (GNSS-DOs)" data-state="closed"><span class="citation inline" data-pplx-citation="" data-pplx-citation-url="https://www.microchip.com/en-us/products/clock-and-timing/components/gnss-gps-disciplined"><a rel="noopener" class="inline-flex max-w-full min-w-0" target="_blank" href="https://www.microchip.com/en-us/products/clock-and-timing/components/gnss-gps-disciplined"></a></span></span></td>
</tr>
<tr>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">Protecciones</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">OVP, SCP, OTP, UVLO</td>
<td class="px-sm border-subtler min-w-[48px] break-normal border-b border-r">Battle short, Power Good<span class="citation-nbsp"></span><span class="inline-flex" aria-label="GNSS/PPS-Disciplined Oscillators (GNSS-DOs)" data-state="closed"><span class="citation inline" data-pplx-citation="" data-pplx-citation-url="https://www.microchip.com/en-us/products/clock-and-timing/components/gnss-gps-disciplined"><a rel="noopener" class="inline-flex max-w-full min-w-0" target="_blank" href="https://www.microchip.com/en-us/products/clock-and-timing/components/gnss-gps-disciplined"></a></span></span></td>
</tr>
</tbody>
</table>
&nbsp;

</div>
</div>
Milexia suministra MPFICQor , ofreciendo consultoría de diseño, prototipado rápido, compatibilidad de filtros EMI y mantenimiento de campo para radares de defensa, aviación y sistemas VPX.
